BMW 7 Series: Steering Wheel
Removing And Installing/Replacing Sport Steering Wheel
NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary work
- Remove AIRBAG UNIT
Move wheels/sport steering wheel into straight-ahead position.
Disconnect plug connection (1).
Release screw (2) and remove sport steering wheel.
Installation note: Make sure connecting line(s) is/are correctly laid.
Tightening torque 32 33 1AZ.
.png)
Fig. 98: Identifying Steering Wheel Plug Connection And Screw (32 33 010)
Installation note: Version with steering wheel heating: Before fitting sport steering wheel on steering column, ensure correct cable routing.
Align sport steering wheel by way of marking (1) to steering column marking (2) and attach.
.png)

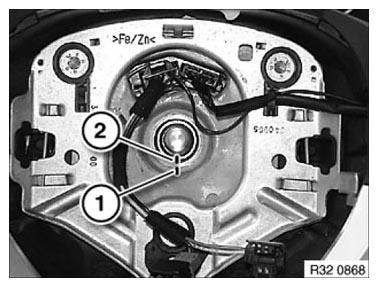

Fig. 99: Identifying Marks On Steering Column (32 33 010)
Replacement
- Modify both SWITCHES ON SPORT STEERING WHEEL
- Modify DESIGN COVER
- If necessary, modify STEERING WHEEL MODULE CONTROL UNIT
REMOVING AND INSTALLING/REPLACING STEERING WHEEL
NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary tasks
- Remove AIRBAG UNIT
Move wheels/steering wheel into straight-ahead driving position.
Disconnect plug connection (1).
Release screw (2) and remove steering wheel.
Installation note: Make sure connecting line(s) is/are correctly laid.
Tightening torque 32 33 1AZ.
.png)
Fig. 100: Identifying Steering Wheel Plug Connection And Screw (32 33 000)
Installation note: Before fitting steering wheel on steering column, ensure correct cable routing.
Align steering wheel by way of marking (1) to steering column marking (2) and attach.
.png)
Fig. 101: Identifying Marks On Steering Column (32 33 000)
Replacement
- Modify DESIGN COVER
- Modify MULTIFUNCTION STEERING WHEEL SWITCH
- If necessary, modify STEERING WHEEL MODULE CONTROL UNIT
Replacing Design Cover For Sport Steering Wheel
Necessary preliminary tasks
- Remove AIRBAG UNIT
- Remove BOTH SWITCHES FROM SPORT STEERING WHEEL
Unclip design cover in direction of arrow.
.png)
Fig. 102: Removing Design Cover Of Steering Wheel
REPLACING STEERING WHEEL DESIGN COVER
Necessary preliminary tasks
- REMOVE AIRBAG UNIT
Unclip design cover in direction of arrow.
.png)
Fig. 103: Removing Design Cover Of Steering Wheel
