BMW 7 Series: Replacing Rear Passenger Compartment A/C Control Panel Fan Motor

Necessary preliminary work

  • Remove REAR PASSENGER COMPARTMENT A/C CONTROL PANEL

Release screws (1).

Remove fan motor (3) from A/C control panel (2).

Installation note: Make sure pins (4) are correctly seated on fan motor (3).

Rear Light Cluster
Fig. 90: Identifying A/C Control Panel, Fan Motor And Screws

REPLACING SEALING FRAME FOR LEFT OR RIGHT REAR LIGHT (ON REAR LID)

Necessary preliminary tasks

  • Remove and install left or right rear light

Detach sealing frame (1) in direction of arrow from rear light (2).

Installation: Make sure sealing frame (1) is correctly bonded all round on rear light (2).

Rear Light Cluster
Fig. 91: Removing Sealing Frame From Rear Light

REPLACING SEALING FRAME FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL)

Necessary preliminary tasks

  • Remove and install left or right REAR LIGHT

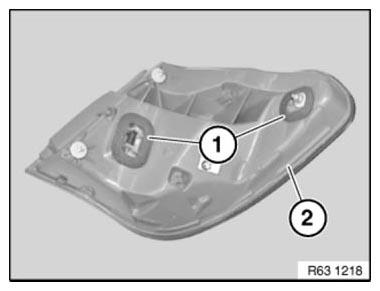

Detach sealing frame (1) from rear light (2).

Installation: Make sure sealing frame (1) is correctly bonded all round on rear light (2).

Rear Light Cluster
Fig. 92: Identifying Rear Light And Sealing Frame
