BMW 7 Series: Replacing Outer Section Of Left Or Right Rear Wheel Housing (Side Panel Removed)
Read contents of BODY, GENERAL.
Spot-weld bonding is used on this vehicle. Observe specific procedure.
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
Necessary preliminary tasks
Remove COVER FOR REAR SIDE MEMBER
Following new body parts are required:
- Outer wheel arch section, rear
- C-pillar reinforcement
- Shaped parts, entrance (not pictured)

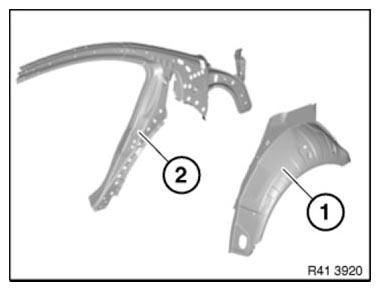

Fig. 233: Identifying C-Pillar Reinforcement And Outer Wheel Arch Section,
Rear
Removal of outer wheel arch section

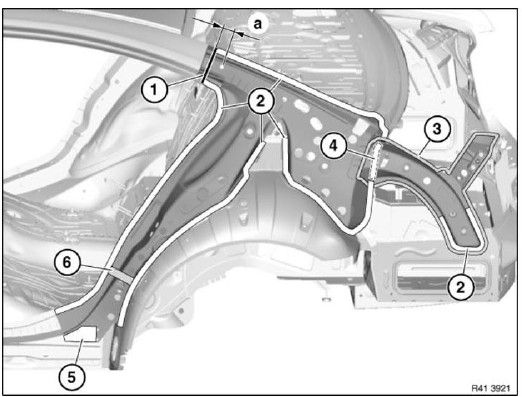

Fig. 234: Identifying Rivet Joints Area, Sheet Section And Spot-Weld Bonded
Joints Area
Mark severance cut (1) in accordance with measurement and cut.
IMPORTANT: Cut outer panel only.
Measurement a = approx. 30 mm from center point of 14 mm dia. hole.
Open welded connections in areas (2).
Fold sheet section (3) forwards and open weld joints in area (4).
Open rivet joints in area (5).
Remove sheet section.
Installation note: Weld in REINFORCEMENT PLATE at severance cut.
Replace both CAVITY ACOUSTIC BAFFLES (6).
No rivet connection in area (5). Weld new part.
Open spot-weld bonded joints in area (1) Open welded connections in area (2).
Remove outer section of wheel arch.

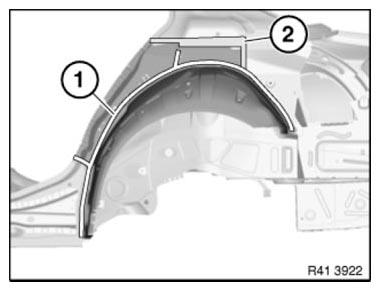

Fig. 235: Identifying Spot-Weld Bonded Joints Area And Welded Connections
Area
Preparation of new part
Mark severance cut on C-pillar reinforcement and cut.
Adjust new parts in conjunction with side panel to fit.
Installation of outer wheel arch section
Install and weld new parts.
