BMW 7 Series: Replacing Led For Front Door Trim Panel Light (Left Or Right)

Necessary preliminary tasks

  • Remove FRONT LEFT DOOR TRIM PANEL

Unlock LED for front door trim panel (1) from holder (2).

Detach LED for front door trim panel (1).

Installation

Make sure LED for front door trim panel (1) is correctly seated in holder (2).

Interior Lights
Fig. 107: Identifying LED For Front Door Trim Panel And Holder

REPLACING LED FOR FRONT INSIDE DOOR OPENER (LEFT OR RIGHT)

Necessary preliminary tasks

  • Remove FRONT LEFT DOOR TRIM PANEL

Turn LED for front inside door opener (1) in direction of arrow 45º clockwise and remove towards top.

Installation: Make sure LED for front inside door opener (1) is correctly seated.

Interior Lights

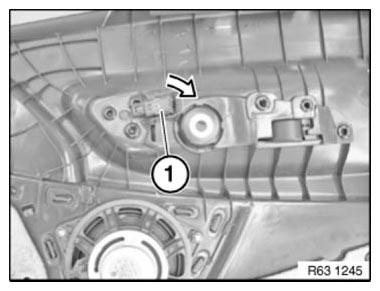

Fig. 108: Turning LED For Front Inside Door Opener

REPLACING LED FOR REAR DOOR TRIM PANEL LIGHT (LEFT OR RIGHT)

Necessary preliminary tasks

  • Remove REAR LEFT DOOR TRIM PANEL

Operation is described in: Replacing LED FOR FRONT DOOR TRIM PANEL LIGHT

REPLACING LED FOR REAR INSIDE DOOR OPENER (LEFT OR RIGHT)

Necessary preliminary tasks

  • Remove door trim panel.

Pull out LED for rear inside door opener (1) in direction of arrow.

Slide lighting cable (2) upwards in direction of arrow from holder (3).

Detach LED for rear inside door opener (1) from light cable (2).

Installation: Make sure LED for rear inside door opener (1) is correctly seated.

Make sure light cable (2) is correctly seated in holder (3).

Interior Lights

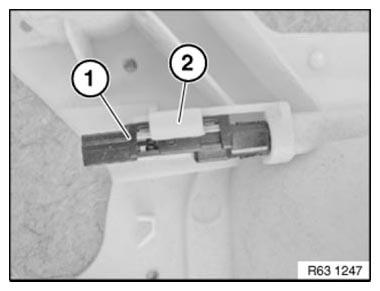

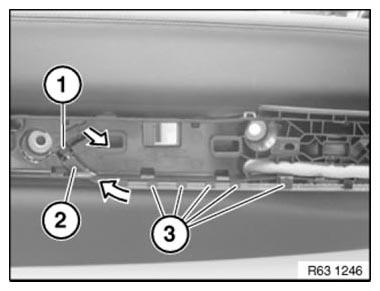

Fig. 109: Sliding Lighting Cable From Holder

REPLACING LIGHT BULB FOR LUGGAGE COMPARTMENT LIGHT (ON TAILGATE)

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS).

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT LIGHT

Lever out luggage compartment light (1) at recesses (2) in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

Interior Lights

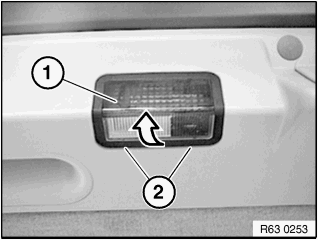

Fig. 110: Removing Luggage Compartment Light

Replacement:

  • If necessary, convert bulbs.
  • Note BULB TYPE.

Remove cover (1) in direction of arrow.

Remove bulb underneath.

Interior Lights

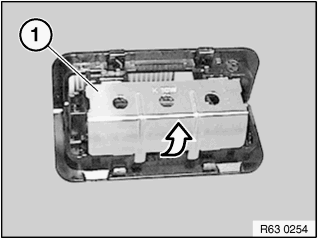

Fig. 111: Removing Cover To Access Bulb
