BMW 7 Series: Rear seats- Lumbar support

Concept

The curvature of the seat backrest can be adjusted in a way that it supports the lumbar region of the spine. The lower back and the spine are supported for upright posture.

Adjusting

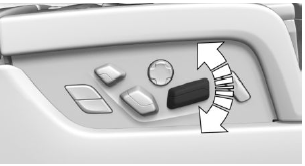

  • Press the front/rear
    section of the button: The curvature is increased/ decreased.
  • Press the upper/lower section of the button: The curvature is shifted up/ down.

Folding the footrest out/in

General information

The distance between the front passenger seat and the rear seat must be sufficiently large to unfold the footrest on the backrest of the front passenger seat.

Adjusting

Press the upper or lower section
of the button.

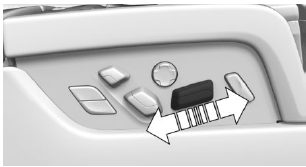

Forward/backward

Forward/backward


Push switch forward or backward.

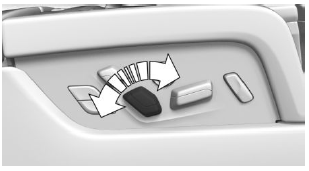

Seat tilt

Seat tilt


Move switch up or down.

Backrest tilt

Backrest tilt


Move switch forward or backward.

Adjusting the front passenger seat from the rear

Concept

The front passenger seat can be operated from the rear, for instance to increase the legroom in the rear.

General information

The switch for adjusting the upper backrest can be used to set the angle of the screen in the rear on the passenger side.

Adjusting

Adjusting

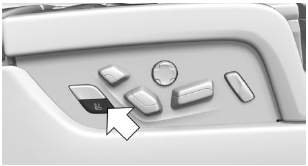

  1. Press the button.

  2. Adjust the front passenger seat, for instance forward/back.
  3. Press the button to
    deactivate the function.

The function deactivates itself automatically after some time.

BMW Touch Command

The rear seats can also be operated via BMW Touch Command.
