BMW 7 Series: Power windows

General information

The windows can be opened with the vehicle key from the outside as well as closed with Comfort Access.

With Comfort Access: The windows can be closed from the outside via Comfort Access.

Additional information: Vehicle key

Safety information

Warning


When operating the windows, body parts and objects can be jammed. There is a risk of injury or risk of damage to property. Make sure that the area of movement of the windows is clear during opening and closing.

Overview

Safety information

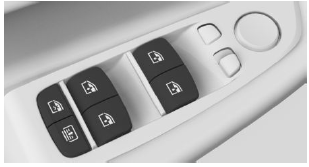

Power windows


Safety switch


Functional requirements

The windows can be operated under the following conditions.

  • Standby state is switched on.
  • Drive-ready state is switched on.

The vehicle key must be in the car's interior.

Opening

  • Press the switch to the
    resistance point.

The window opens while the switch is being held

  • Press the switch beyond the
    resistance point.

The window opens automatically. Pressing the switch again stops the motion.

Closing

  • Pull the switch to the
    resistance point.

The window closes while the switch is being held.

  • Pull the switch beyond the
    resistance point.

The window closes automatically if the door is closed. Pulling again stops the motion.

Jam protection system

Concept

The jam protection prevents objects or body parts becoming jammed between the door frame and window while a window is being closed.

General information

If resistance or a blockage is detected while a window is being closed, the closing action is interrupted.

The window opens slightly.

Safety information

Warning

Accessories on the windows such as antennas can impact jam protection. There is a risk of injury.

Do not install accessories in the area of movement of the windows.

Closing without the jam protection system

In case of danger from the outside or if ice might prevent normal closing, proceed as follows:

  1. Pull the switch past the
    resistance point and hold it there.

    The window closes with limited jam protection.

    If the closing force exceeds a specific threshold, closing is interrupted.

  2. Pull the switch past the
    resistance point again within approx. 4 seconds and hold it there.

    The window closes without jam protection.

Safety switch

Concept

With the safety switch, it is possible to block particular functions in the rear. This makes sense, for instance if children or animals are carried in the rear.

If an accident of a certain severity occurs, the safety function is switched off automatically.

General information

The following functions can be locked by pressing the safety switch:

  • Seat adjustments in the rear.
  • Opening and closing of the rear windows using the switches in the rear.
  • Operation of the roller sunblind in the rear window using the switches in the rear.
  • Operation of the roller sunblinds in the side windows using the switches in the rear.
  • Operation of the rear sun protection using the switches in the rear.

Switching on/off

Press the button.


The LED lights up if the safety function is switched on.
