BMW 7 Series: Drive, Slide/Tilt Sunroof/Convertible Top
REMOVING AND INSTALLING/RENEWING DRIVE WITH GEARBOX (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF
Necessary preliminary tasks
- Remove ROOF SWITCH CLUSTER
NOTE: Secure drive with gearbox for actuating slide/tilt sunroof (3) against falling out.
Unfasten plug connection (1) and disconnect.
Release screws (2), tightening torque 54 13 1AZ.
.png)

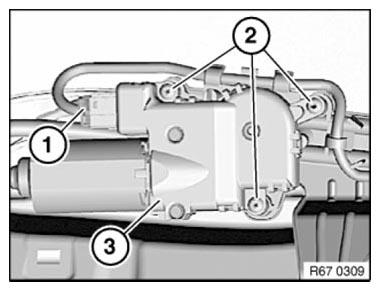

Fig. 55: Identifying Plug Connection, Screws And Actuating Slide/Tilt Sunroof
NOTE: Screws (2) are microencapsulated.
Remove drive with gearbox for actuating slide/tilt sunroof (3).
Installation
Insert gear wheel (1) of drive with gearbox for actuating slide/tilt sunroof (2) exactly in gear teeth (3).
.png)
Fig. 56: Identifying Gear Wheel, Actuating Slide/Tilt Sunroof And Gear Teeth
Installation
- Initialize SLIDE/TILT SUNROOF.
Replacement
Carry out VEHICLE PROGRAMMING/ENCODING
REMOVING AND INSTALLING/REPLACING DRIVE WITH GEARBOX (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (REAR)
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION).
Necessary preliminary work
- Lower HEADLINER
Disconnect plug connection (1) and if necessary expose cable.
Release screws (2) and remove drive (3).
Tightening torque 51 13 1AZ.
.png)
Fig. 57: Identifying Actuating Slid/Tilt Sunroof Drive With Plug Connection
And Mounting Screws
Installation note: Insert gear (1) of electric motor with gearbox for operation of slide/tilt sunroof (2) exactly in gearing (3).
.png)
Fig. 58: Identifying Gear Wheel, Actuating Slide/Tilt Sunroof And Gear Teeth
Installation note:
- Initialize SLIDE/TILT SUNROOF.
