BMW 7 Series (G11/G12) 2015-2022 Owners Manual / Controls / Seats, mirrors, and steering wheel / Massage function

BMW 7 Series: Massage function

Concept

Depending on the program, the massage function ensures relaxed muscles and better blood circulation and can avoid fatigue.

General information

Eight different massage programs can be selected:

  • Pelvis activation.
  • Upper body activation.
  • Full body activation.
  • Back massage.
  • Shoulder massage.
  • Lumbar massage.
  • Upper body training.
  • Full body training.

Overview

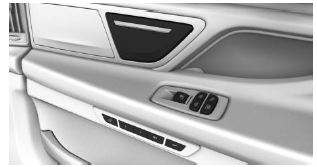

Front

Front


Massage function


Rear

Rear


Massage function


Switching on

Press the button once for each
intensity level.

The maximum intensity level is reached when three LEDs are lit.

Switching off

Press and hold the button until
the LEDs go out.

Adjusting the massage program

Via iDrive:

  1. "CAR"
  2. "Settings"
  3.  "Seat comfort"
  4.  Select desired seat.
  5. "Seat massage"
  6. Select the desired setting.
