BMW 7 Series (F01/F02) 2008-2015 Service Manual / Rear Axle / Wheel Bearings / Detaching Wheel Bearing Inner Ring From Drive Flange (Drive Flange Removed)

BMW 7 Series: Detaching Wheel Bearing Inner Ring From Drive Flange (Drive Flange Removed)

Notes

IMPORTANT:

  • Special tool 33 4 409 must not be removed!

Insert special tool 33 4 408 into special tool 33 4 401.

Wheel Bearings
Fig. 125: Positioning Special Tools (33 4 408), (33 4 401) And (33 4 409)

Position special tool 33 4 401 in conjunction with 33 4 408 on drive flange.

Wheel Bearings
Fig. 126: Positioning Special Tools (33 4 401) In Conjunction With (33 4 408) On Drive Flange

Tension special tool 33 4 401 with spanners 33 4 403 and 33 4 404 together until special tool is resting against wheel bearing inner ring.

Wheel Bearings

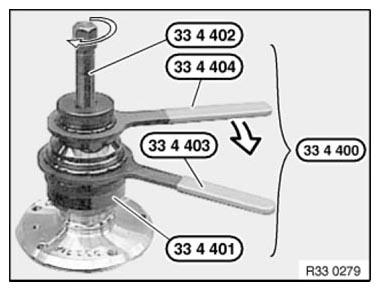

Fig. 127: Tensioning Special Tool (33 4 401) With Spanners (33 4 403) And (33 4 404)

Use hydraulic unit and adapter kits, see BMW Workshop Catalogue.

  • Hydraulic unit - 81 64 2 155 744
  • Adapter kit 1 - 81 64 2 155 745
  • Adapter kit 2 - 81 64 2 155 746

Wheel Bearings
Fig. 128: Detaching Wheel Bearing Inner Ring From Drive Flange Using Special Tools

  • Pressure cylinder of hydraulic unit (1) must be in the initial position.
  • Spindle F3 must terminate flush with hydraulic unit (1).
  • Assemble special tool, see graphic.
  • Turn spindle of special tool 33 4 400 as far as it will go.

The following tools are required for detachment, consult graphic for arrangement:

Vehicle components

VEHICLE COMPONENTS

I Drive flange hub
II Wheel carrier/swivel bearing

Required components for all models and types

REQUIRED COMPONENTS FOR ALL MODELS AND TYPES

1 Hydraulic unit
F3 Spindle M24 (length 270 mm)
E3 Washer M24
C1 Holding sleeve
K1 Screws M12 x 1.5
K2 Screws M14 x 1.5
B1 Adapter
33 4 400 Special tool

Components specific to model and type

ADAPTER SPECIFICATIONS

K1 Screws M12 x 1.5
K2 Screws M14 x 1.5

Detach wheel bearing inner ring from drive flange.
