BMW 7 Series: Adjuster

Minimum set: Mechanical tools Adjuster MW

Note: (Door lock tensioner) For pre-tensioning front and rear door locks when installing. Change to tool through use of noise-optimized locks from 02/2004. Illustration items: 1 = knurled nut 51 2 191 2 = support 51 2 192 3 = protection 51 2 196 4 = mandrel 51 2 197

Storage Location

B44

C44

SI number

01 06 02 (864)

Body Equipment

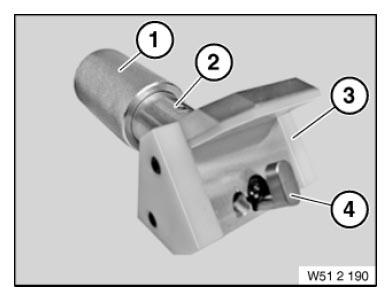

Fig. 1: Identifying Adjuster (512190)

Consisting of:

2 = Guard

NOTE: Is replaced by 51 2 196 with the use of noise-optimized locks from 02/2004 Replaced by 51 2 196 (0 494 906)

2 = Mandrel

NOTE: Is replaced by 51 2 197 with the use of noise-optimized locks from 02/2004 Replaced by 51 2 197 (0 494 907)

4 = Mandrel

NOTE: Replaces mandrel 51 2 194

1 = Nut

NOTE: (Knurled nut)

2 = Support

2 = Shaped element

NOTE: E85 (discontinued)

3 = Guard

NOTE: Replaces guard 51 2 193
