BMW 7 Series: Support

Minimum set: Mechanical tools Support MW

Note: (Bonnet support (2 x) ) For retaining engine compartment lid in working position

Storage Location

B22

C22

SI number

01 22 06 (307)

Body Equipment
Fig. 11: Identifying Support (512240)

SUPPORT

Support MW

Note: For the engine compartment lid when removing the engine/Replaced by 51 2 140.(0 492 603)

Body Equipment
Fig. 12: Identifying Support (512110)

SUPPORT, LEFT

Support, left

Note: Gantry crane

SI number

6 04 03 (046)

SUPPORT, RIGHT

Support, right

Note: Gantry crane

SI number

6 04 03 (046)

TOOL

Tool MW

Replaced by: 0496710

Note: For checking retraction depth when installing side window. From 10/2009 Replaced by 51 0 000.(0 496 710)

Storage Location

B6

SI number

01 05 90 (207)

Body Equipment
Fig. 13: Identifying Tool (513080)

TOOL

Tool MW

Note: (Punching tool) For punching the recess for the seat memory switch when replacing the front and rear door trim Supplied complete in plastic case.

SI number

01 23 09 (589)

Consisting of:

12 = Nut

NOTE: as an alternative for 51 4 106 with tight packaging space

Body Equipment
Fig. 14: Identifying Tool (514100)

13 = Matrix

14 = Tool

NOTE: Cutting punch for front door seat memory switch

1 = Tool

NOTE: (Lower yoke)

2 = Tool

NOTE: (Upper yoke)

3 = Matrix

NOTE: (Cutting matrix) bottom for F01/F02

4 = Tool

NOTE: (Cutting punch) top for F01/F02

5 = Washer

NOTE: (Thrust washer)

6 = Nut

NOTE: (Wing nut) M12

7 = Template

NOTE: For rear door trim F01

8 = Template

NOTE: For rear door trim F02

9 = Tool

NOTE: (Wad punch) Size 12 mm

10 = Pressing-out tool

NOTE: (Ejector) For removing residual punched portions from cutting matrix.

11 = Hexagon socket

NOTE: (Hexagon socket wrench) 6 mm

VACUUM PUMP

Note: for gantry crane

SI number

6 04 03 (046)

WINDSCREEN/REAR WINDOW LOCATING FIXTURE

Note: Gantry crane

SI number

6 04 03 (046)

Body Equipment
Fig. 15: Identifying Windscreen/Rear Window Locating Fixture (51 0 104)

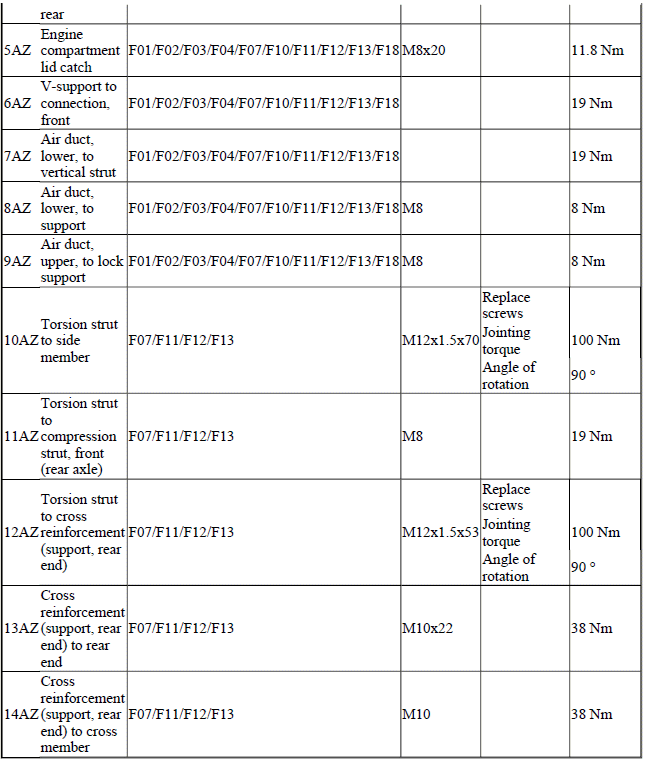

Body Equipment - Tightening Torques

DOOR LOCKS, REAR

Body Equipment - Tightening Torques

DOOR TRIM PANEL TO REAR DOOR WITH ARMRESTS

TIGHTENING TORQUE SPECIFICATION - DOOR TRIM PANEL TO REAR DOOR WITH ARMRESTS

Body Equipment - Tightening Torques

ELECTRICAL WINDOW SYSTEMS OPERATION FRONT

TIGHTENING TORQUE SPECIFICATION - ELECTRICAL WINDOW SYSTEMS OPERATION FRONT

Body Equipment - Tightening Torques

ELECTRICAL WINDOW SYSTEMS OPERATION, REAR

TIGHTENING TORQUE SPECIFICATION - ELECTRICAL WINDOW SYSTEMS OPERATION, REAR

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

ENGINE COMPARTMENT LID CATCH/LOCKS

TIGHTENING TORQUE SPECIFICATION - ENGINE COMPARTMENT LID CATCH/LOCKS

Body Equipment - Tightening Torques

FRONT BUMPER

TIGHTENING TORQUE SPECIFICATION - FRONT BUMPER

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

FRONT DOOR LOCKS

TIGHTENING TORQUE SPECIFICATION - FRONT DOOR LOCKS

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

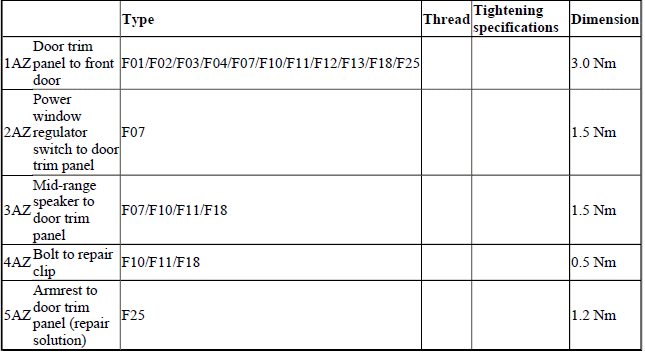

FRONT DOOR TRIM PANEL WITH ARMRESTS

TIGHTENING TORQUE SPECIFICATION - FRONT DOOR TRIM PANEL WITH ARMRESTS

Body Equipment - Tightening Torques

GASKETS AND LOOSE BODY COMPONENTS

TIGHTENING TORQUE SPECIFICATION - GASKETS AND LOOSE BODY COMPONENTS

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

HEADLINING

TIGHTENING TORQUE SPECIFICATION - HEADLINING

Body Equipment - Tightening Torques

MIRRORS, COVERS, STORAGE COMPARTMENTS

TIGHTENING TORQUE SPECIFICATION - MIRRORS, COVERS, STORAGE COMPARTMENTS

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

PANEL, REAR PARCEL SHELF, ROLLER SUN BLIND

TIGHTENING TORQUE SPECIFICATION - PANEL, REAR PARCEL SHELF, ROLLER SUN BLIND

Body Equipment - Tightening Torques

REAR BUMPER

TIGHTENING TORQUE SPECIFICATION - REAR BUMPER

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

REAR LID LOCK, LOCKS

TIGHTENING TORQUE SPECIFICATION - REAR LID LOCK, LOCKS

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

REINFORCEMENT, BODY

TIGHTENING TORQUE SPECIFICATION - REINFORCEMENT, BODY

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

SIDE TRIM PANEL WITH ARMRESTS

TIGHTENING TORQUE SPECIFICATION - SIDE TRIM PANEL WITH ARMRESTS

Body Equipment - Tightening Torques

TRIM PARTS, COVERS, HANDLE TRIM

TIGHTENING TORQUE SPECIFICATION - TRIM PARTS, COVERS, HANDLE TRIM

Body Equipment - Tightening Torques

TRIM PANEL, DASHBOARD

TIGHTENING TORQUE SPECIFICATION - TRIM PANEL, DASHBOARD

Body Equipment - Tightening Torques

Body Equipment - Tightening Torques

UNDERBODY PANELLING

TIGHTENING TORQUE SPECIFICATION - UNDERBODY PANELLING

Body Equipment - Tightening Torques
