BMW 7 Series (F01/F02) 2008-2015 Service Manual / Integrated Suspension Systems / Pump Assembly With Container / Replacing Ventilation Line For Air Supply Unit
BMW 7 Series: Replacing Ventilation Line For Air Supply Unit
Necessary preliminary tasks
- Remove REAR BUMPER TRIM
Detach ventilation line (1) in direction of arrow from air supply unit.
Unclip ventilation line (1) from holders.
.png)
Fig. 139: Locating Air Supply Unit Ventilation Line
Remove air filter (3) from holder (4).
Unclip ventilation line (1) from holders.
Pull ventilation line (1) in direction of arrow out of bumper trim (2).
.png)

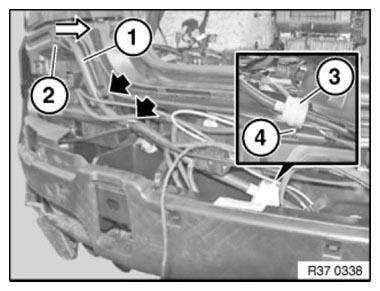

Fig. 140: Pulling Air Supply Unit Ventilation Line Out Of Bumper Trim
