BMW 7 Series: Removing And Installing/Replacing Left Or Right Trailing Link
IMPORTANT: Both trailing links must always be replaced!
Necessary preliminary work
- Remove FRONT ASSEMBLY UNDERSIDE PROTECTION.
Release screws (1).
Remove front wheel arch cover (2) from bumper trim.
Installation note: Make sure wheel arch cover is correctly positioned.
.png)

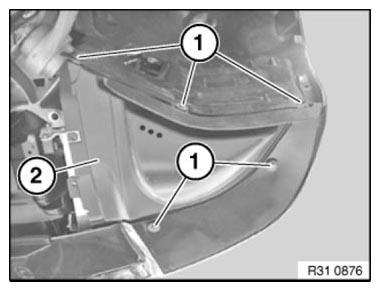

Fig. 35: Identifying Front Wheel Arch Cover With Screws
Release nut (1) and remove screw (2).
Tightening torque 31 12 1AZ.
Remove tension strut (3) from front axle support.
Installation note: Observe assembly sequence (see below) Replace screw and nut.
.png)
Fig. 36: Identifying Tension Strut With Nut And Screw
IMPORTANT: Do not release tension strut from swivel bearing with impact tool.
The swivel bearing must be removed if the steel bushing moves.
Rubber gaiter of tension strut must not be damaged! Do not pull stainless steel ring off journal.
Release nut (1) and remove trailing link (2) from swivel bearing.
Tightening torque 31 12 2AZ.
Installation note: Keep tension strut to swivel bearing connection clean and free from oil and grease.
Replace self-locking nut.
.png)
Fig. 37: Identifying Trailing Link With Nut
IMPORTANT: Risk of damage!
Observe assembly sequence.
Tension strut must be screwed in normal position! (Adjustment of normal position, see below).
Installing tension strut
1. Install tension strut on front axle support (do not tighten down bolt connection)
2. Adjust tension strut to swivel bearing to dimension (A) and tighten on front axle support
Tightening torque 31 12 1AZ.
Dimension (A) = 2 cm (vehicle on vehicle hoist, spring strut rebounded)
NOTE: Installing the tension strut to dimension (A) corresponds to the normal position in the compressed state!
3. Press trailing link into swivel bearing and tighten trailing link/swivel bearing
Tightening torque 31 12 2AZ.
.png)
Fig. 38: Identifying Tension Strut On Swivel Bearing Adjusting Dimension
