BMW 7 Series: Removing And Installing/Replacing Front Lower Strap Fitting (Belt
Tensioner), Front Passenger Seat
Necessary preliminary work
- Remove FRONT PASSENGER SEAT
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be
reused
- Screw connection must be completed within 20 minutes (start of
hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use
UNLOCK AND DISCONNECT plug connections (1).
Fig. 14: Identifying Front Passenger Seat Screw
Release screw (1).
Installation note:
Replace screw (1).
Tightening torque 72 11 03AZ.
Remove seat belt tensioner.
Installation note:
Belt tensioner is coded against incorrect assembly.
Fig. 15: Identifying Seat Belt Tensioner Screw
REMOVING AND INSTALLING/REPLACING REAR CENTER LOWER STRAP FITTING
Necessary preliminary work
Release screw (1).
Tightening torque 72 11 22AZ.
Remove lower strap.
Installation note:
Lower strap fitting is coded to prevent incorrect assembly.
Fig. 16: Identifying Lower Strap Screw
REMOVING AND INSTALLING/REPLACING REAR CENTER SEAT BELT
Necessary preliminary tasks
- Remove rear seat. See SEATS - REPAIR.
- Remove rear window shelf.
Release screw (1).
Tightening torque 72 11 21AZ.
Installation:
End fitting is coded against incorrect assembly.

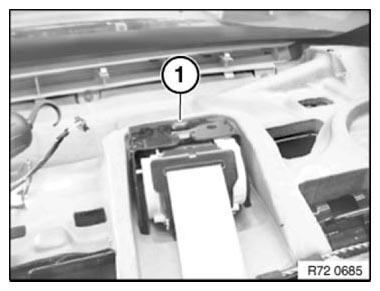

Fig. 17: Identifying Rear Centre Seat Belt Screw
Slacken nut (1).
Tightening torque 72 11 20AZ.
Remove automatic reel with anchor fitting.
Installation
Automatic reel is coded against incorrect installation.
Fig. 18: Identifying Automatic Reel Nut
READ NEXT:
Necessary preliminary tasks
Remove rear seat.
Unfasten plug connection (1) and disconnect.
Release sleeve nut (2).
Tightening torque 72 11 27AZ.
Remove lower belt fitting.
Installation:
Lower
