BMW 7 Series (F01/F02) 2008-2015 Service Manual / Wheel And Tires / Disc Wheels (RIMS) / Removing And Installing/Replacing An RDC Trigger Transmitter
(Front)
BMW 7 Series: Removing And Installing/Replacing An RDC Trigger Transmitter (Front)
Necessary preliminary tasks
- Detach WHEEL ARCH COVER front section at front
Disconnect plug connection (1).
Gently press lugs (2) apart.
Remove RDC sensor (3) in direction of arrow.

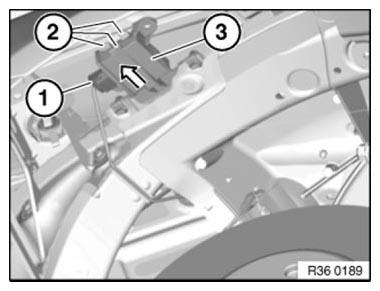

.png)
Fig. 56: Removing RDC Sensor
REMOVING AND INSTALLING/REPLACING AN RDC TRIGGER TRANSMITTER (REAR)
Necessary preliminary tasks
- Remove right WHEEL ARCH TRIM
Left side
Disconnect plug connection (1).
Release plastic nuts (2).
Remove RDC transmitter (3).
.png)
Fig. 57: Identifying RDC Transmitter With Plug Connection And Nuts (Left
Side)
Right side
Disconnect plug connection (1).
Release expander rivets (2).
Remove RDC transmitter (3).
.png)
Fig. 58: Identifying RDC Transmitter With Plug Connection And Nuts (Right
Side)
