BMW 7 Series: Miscellaneous Painting
Follow GENERAL INSTRUCTIONS ON PAINTING.
Engine compartment, complete
Carry over the area shown symmetrically to the other side of the car.
.png)
Fig. 1: Identifying Paint Applying Areas On Engine Compartment, Complete
Engine bulkhead
.png)
Fig. 2: Identifying Engine Compartment Partition Paint Applying Areas
Engine support (partial replacement before spring strut dome)
Inner side shown
.png)
Fig. 3: Identifying Engine Carrier (Inner Side) Paint Applying Areas
Engine support (partial replacement before spring strut dome)
Outer side shown
.png)
Fig. 4: Identifying Engine Carrier (Outer Side) Paint Applying Areas
Engine support (inside only)
.png)
Fig. 5: Identifying Engine Carrier (Inside Side) Paint Applying Areas
Wheel arch, front, complete
Inner side shown
.png)
Fig. 6: Identifying Front Wheel Arch (Inner Side) Paint Applying Areas
Wheel arch, front, complete
Outer side shown
.png)
Fig. 7: Identifying Front Wheel Arch (Outer Side) Paint Applying Areas

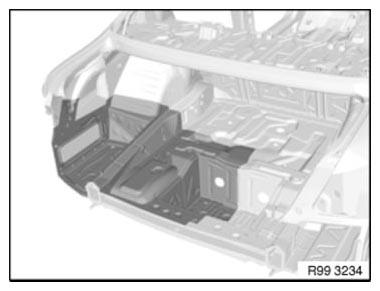

Luggage compartment floor
Carry over the area shown symmetrically to the other side of the car.
.png)
Fig. 8: Identifying Luggage Compartment Floor Paint Applying Areas
