BMW 7 Series: Pedals
Pedal Mounting Block
Removing And Installing (Replacing) Complete Bearing Support For Foot Pedal
IMPORTANT: After completion of work, carry out function check.
Necessary preliminary work
- Remove BRAKE SERVO
Release screws (1).
Remove control units from holder (2). Plugs remain connected.
.png)
Fig. 1: Identifying Screws And Holder
Slacken nut (1).
Installation note: Replace self-locking nut.
Tightening torque, see 35 11 2AZ in PEDAL BRACKET.
Remove bearing support (2).
.png)
Fig. 2: Identifying Slacken Nut And Bearing Support
Unclip line (1).
Disconnect plug connection (2).
Replacement
- Modify brake light switch
- Modify holder for control units
.png)
Fig. 3: Identifying Unclip Line And Plug Connection
REPLACING SPRING FOR BRAKE PEDAL
Necessary preliminary tasks
- Remove footwell trim

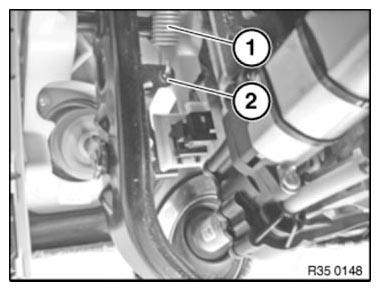

Disconnect return spring (1).
NOTE: Check grommet (2) for damage, replace if necessary.
.png)
Fig. 4: Identifying Return Spring And Grommet
Brake Pedal With Linkage
REPLACING SPRING FOR BRAKE PEDAL
Necessary preliminary tasks
- Remove footwell trim
Disconnect return spring (1).
NOTE: Check grommet (2) for damage, replace if necessary.
.png)
Fig. 5: Identifying Return Spring And Grommet
Accelerator Pedal Actuation
REMOVING AND INSTALLING OR REPLACING ACCELERATOR PEDAL MODULE
Take off cap.
Release screw.
Pull accelerator pedal module upwards out of fixture.
Installation note: Tightening torque, see 35 40 1AZ.
.png)
Fig. 6: Pulling Accelerator Pedal Module
Pull off connector (1).
Remove accelerator pedal module.
.png)
Fig. 7: Identifying Connector
IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
Pedals - Tightening Torques
FOOT CONTROLS
TIGHTENING TORQUE SPECIFICATION - FOOT CONTROLS
.png)
PARKING BRAKE
TIGHTENING TORQUE SPECIFICATION - PARKING BRAKE
.png)
PEDAL BRACKET
TIGHTENING TORQUE SPECIFICATION - PEDAL BRACKET
.png)
.png)
