BMW 7 Series: Removing And Installing/Replacing Return Line For Power Steering With ARS (N63)
Notes
WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin! RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Seal off line connections with plugs 32 1 270.
Recycling
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary tasks
- Lower FRONT AXLE SUPPORT
IMPORTANT: Pressure line and connection on valve block must be fitted with suitable sealing plugs 32 1 270 immediately after removal!
Release screw (1).
Tightening torque 37 13 8AZ.
.png)

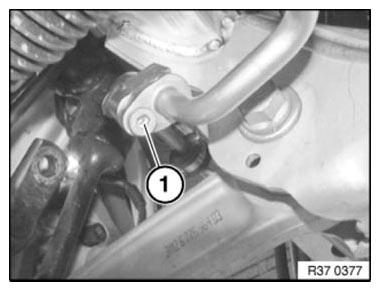

Fig. 139: Identifying Screw
Release holder (1).
.png)

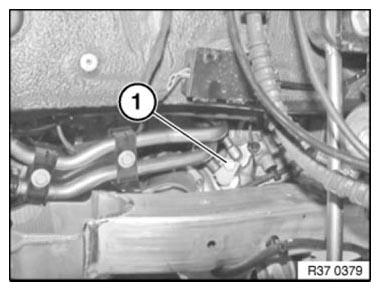

Fig. 140: Identifying Holders
Release screws (1) for hydraulic line on steering gear.
Tightening torque 32 41 5AZ.
Remove hydraulic line.
.png)

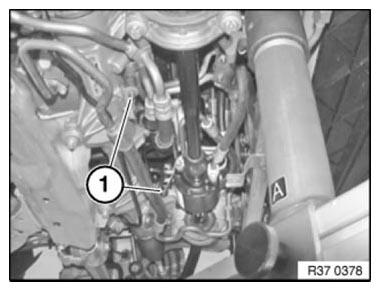

Fig. 141: Identifying Hydraulic Line Screws
Unlock return line on cooling loop and disconnect.
.png)

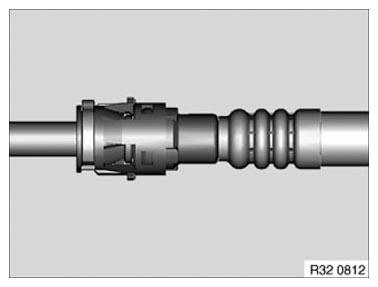

Fig. 142: Identifying Return Line On Cooling Loop
IMPORTANT: When assembling, make sure that in succession only the sealing plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
After installation
- Fill and bleed HYDRAULIC SYSTEM
- Check line connections for leaks
- Carry out INITIAL DYNAMIC DRIVE OPERATION
