BMW 7 Series: System Overview

System Overview

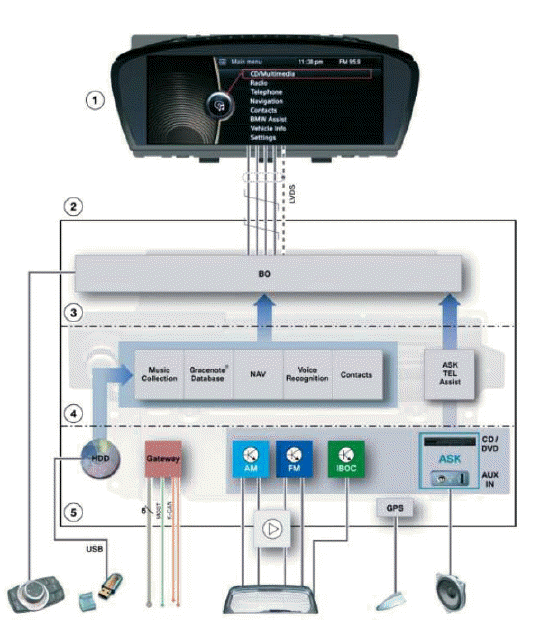

Fig. 2: CIC System Block Diagram

CIC SYSTEM EXPLANATION CHART

  1. Central information display (CID)
  2. Car Information Computer (CIC)
  3. User interface (BO)
  4. Application software
  5. Hardware

System Overview
Fig. 3: Bus Overview E9x And E8x (Not Including E83, E85, E86) Model Series, CIC

BUS EXPLANATION CHART

ACSM - Advanced crash and safety management
CAS - Car access system
CDC - CD changer
CID - Central information display
CIC - Car Information Computer
CON - Controller
FS - MOST direct access
JB - Junction box
SDARS - Satellite radio tuner
TCU - Telematics Control Unit
TOP-HiFI - Top-HiFi amplifier
SBX-High - USB interface box High

System Overview
Fig. 4: CIC System Circuit Diagram, In E9x And E8x Model Series (Not Including E83, E85, E86)

CIC SYSTEM EXPLANATION CHART

  1. Instrument cluster
  2. Dynamic stability control
  3. Junction box
  4. Central information display
  5. Car Information Computer
  6. USB Import/Export jack, glove compartment
  7. Future antenna expansion
  8. Microphone for hands-free facility
  9. Controller
  10. AF output for audio jack (standard equipment) if no USB Audio interface is installed
  11. Antenna diversity module with antenna amplifier
  12. MOST distributor in rear area
  13. OBD interface (including Ethernet connection to CIC)
  14. AF signals to speakers
  15. MOST direct access
  16. Footwell module
  17. Steering column switch cluster
