BMW 7 Series: Steering and traffic jam
assistant- Symbol/ Description
Gray steering wheel symbol:
The system is on standby.
Green steering wheel symbol:
The system is activated.
The system supports the driver
in keeping the vehicle within the
lane.
Yellow flashing steering wheel
symbol:
Lane marking driven over.
The steering wheel vibrates
where applicable.
Yellow steering wheel symbol
and a signal sounds, if applicable:
System interruption is imminent.
Steering wheel symbol flashes
red, signal sounds:
System is switching off.
Yellow steering wheel symbol:
The hands are not grasping the
steering wheel. The system is
still active.
Red steering wheel symbol and
a signal sounds:
The hands are not grasping the
steering wheel. System interruption
is imminent.
The system reduces the speed
to a standstill if applicable.
It is possible that the system will
not execute any supporting
steering movements.
Displays on the steering wheel

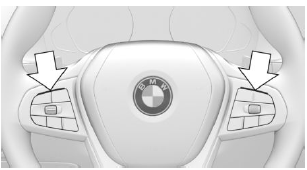

![Displays on the steering wheel](images/books/4061/index.149(2).gif)
The two LED lights above the buttons illuminate
analogously to the displays in the instrument
cluster:
- Yellow: system interruption is imminent.
- Red: system will be deactivated.
The steering wheel displays can be switched
on/off if required.
Via iDrive:
- "CAR"
- "Settings"
- "Driver Assistance"
- "Steering wheel feedback"
- "Light elements"
Displays in the Head-up Display
All system information can also be displayed in
the Head-up Display.
If equipped with Automatic Lane
Change Assistant
Concept
The system additionally supports the driver when
changing lanes on multilane roads.
Functional requirements
- The functional requirements of the steering
and traffic jam assistant are fulfilled.
Functional requirements
- Driving on a road without pedestrians or cyclists
and with physical barriers to oncoming
traffic, such as crash barriers.
- Lane markings have been detected.
- Maximum speed approx. 110 mph, 180 km/h.
- The minimum speed is country-specific.
Switching the function on/off
The lane change assistant can be switched on/
off.
Via iDrive:
- "CAR"
- "Settings"
- "Driver Assistance"
- If necessary, "Driving"
- "Steering Assistance"
- "Automatic Lane Change"
Changing lanes
- Ensure that the traffic situation permits
changing lanes.
- Press the turn indicator lever in the required
direction to the pressure point for signaling
briefly.
Steering support in the required direction can
be detected a short time later.
![Changing lanes](images/books/4061/index.150(2).gif)
After the lane change, the system helps keep the
vehicle in the new lane.
Canceling a lane change
The lane change can be canceled by steering
into the opposite direction.
