Necessary preliminary work
Installation
Holder (1) is encoded against incorrect installation.
Identification (2) indicates on which side of the vehicle holder (1) is stuck in.
For installation position observe shape of holder (1).
.png)

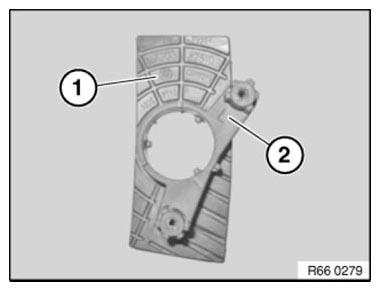

Fig. 45: Identifying Installation Position Of Holder
Installation
Clean bonding surface on bumper trim (4) and remove adhesive residues.
To position holder (1) optimally, pre-install camera (3) on holder (1) before sticking in the holder.
.png)

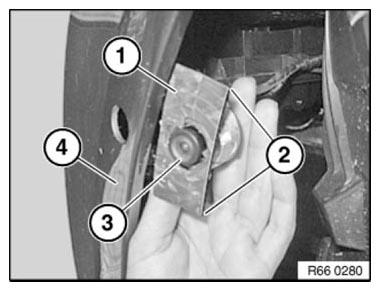

Fig. 46: Installing Camera On Holder
Outer edge (2) on holder (1) must be flush with outer bumper edge (4).
REMOVING AND INSTALLING/REPLACING SIDE VIEW CAMERA ON LEFT OR RIGHT
NOTE: Picture shows front wheel removed for purposes of clarity
.png)

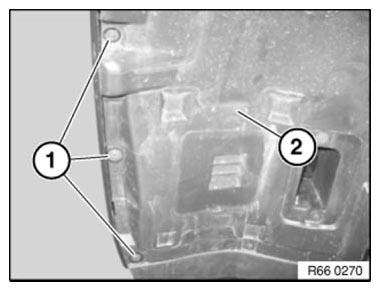

Fig. 47: Identifying Wheel Arch Panel With Screws
Release screws (1).
Fold wheel arch panel (2) to one side.
.png)

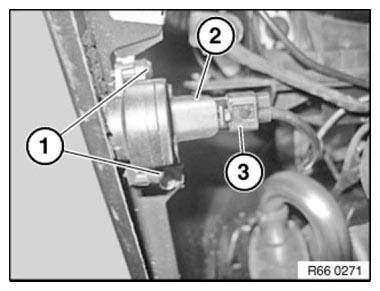

Fig. 48: Identifying Plug Connection, Camera With Screws
Release screws (1).
Remove side view camera (2).
Unlock plug connection (3) and disconnect.
