BMW 7 Series: Removing And Installing/Replacing Fuel Tank Filler Hose
Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready. Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.
IMPORTANT: Ensure adequate ventilation in the place of work! Avoid skin contact (wear gloves)! After installation of fuel tank/prior to first engine start-up:
- Check ground connection at fuel filler neck to body for continuity. If necessary, clean contact surface between body and fuel filler pipe screw connection.
- Fill fuel tank with at least 5 liters of fuel.
Necessary preliminary tasks
- Draw off FUEL from fuel tank
- Remove rear right WHEEL ARCH TRIM
Release plastic nuts (1).
Installation: Check plastic nuts (1), replace if necessary.
Tightening torque 16 12 2AZ.
.png)

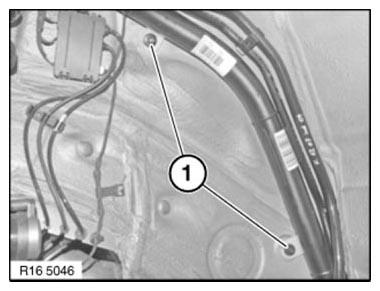

Fig. 27: Identifying Plastic Nuts
IMPORTANT: There may be residual amounts of fuel in the tank.
Catch escaping fuel in a suitable container.
Unfasten hose clip (2).
Installation: Check hose clamp (2), replace if necessary.
Tightening torque 16 12 1AZ.
.png)
Fig. 28: Identifying Filler Hose, Hose Clamp And Quick-Release Coupling
Release quick-release coupling (1).
Detach fuel filler pipe from filler hose (3).
Release hose clamp (4) and remove filler hose (3).
Installation: Check hose clamp (4), replace if necessary.
Tightening torque 16 12 1AZ.
Installation: Make sure lines (1) and (2) are correctly seated in holder.
.png)
Fig. 29: Identifying Fuel Lines
REPLACING CLAMPING BANDS FOR FUEL TANK
Necessary preliminary tasks
- F03: Remove underbody panelling
IMPORTANT: Secure fuel tank against slipping and falling out.
.png)
Fig. 30: Identifying Fuel Tank With Support
Generously support the fuel tank.
Release screws (1).
Installation: Tightening torque 16 11 2AZ.
Remove tightening strap (2).
.png)

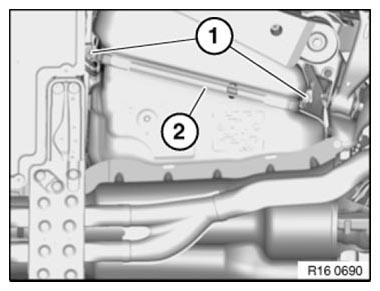

Fig. 31: Identifying Tightening Strap With Mounting Screws
