BMW 7 Series: System Overview

IPO Diagram (E65/E66)

BMW Night Vision

BMW Night Vision
Fig. 2: IPO Diagram (E65/E66)

Connection of Control Units

Control Unit and Camera

The Night Vision control unit and the Night Vision camera are connected via the following cables:

  • LIN bus; Diagnosis, programming and camera control
  • Sym. Video; Video signal from the camera
  • CAN_POW; Power supply from control unit to camera, heating of camera lens
  • Ground; Common earth/ground of camera and control unit for suppressing interference

The video signal between the camera and the control unit is transmitted via two cables as a symmetrical, Analog video differential signal.

In the control unit the differential signal is converted into a CVBS signal and, depending on the equipment specification, transmitted to the navigation system or the video module.

The camera is powered under the following conditions:

  • Switching on of BMW Night Vision by the button in the light switch center
  • Rain/light sensor detects dusk/half-light (driving lights are switched on)

The BMW Night Vision control unit is powered by the front distribution box via term. 30B.

K-CAN

The K-CAN connection of the Night Vision control unit serves to transmit the diagnosis and programming data and to read out the information from the RLS (brightness), the LM (driving lights on) and DSC (yaw rate, speed and steering angle). The signals from DSC are placed on the K-CAN via the SGM. In addition, the control unit receives information on the terminal status via the K-CAN.

System Circuit Diagram (Front Equipment E65/E66)

BMW Night Vision
Fig. 3: System Circuit Diagram (Front Equipment - E65/E66)

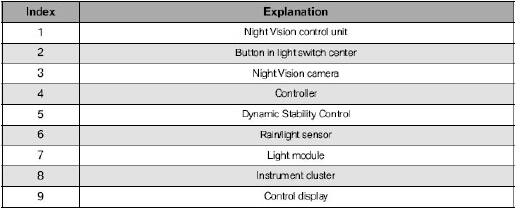

Legend for System Circuit Diagram

BMW Night Vision
Fig. 4: Legends For System Circuit Diagram

IPO Diagram (E60/E61/E63/E64)

BMW Night Vision

BMW Night Vision
Fig. 5: IPO Diagram (E60/E61/E64)

Connection of Control Units

Control Unit and Camera

The Night Vision control unit and the Night Vision camera are connected via the following cables:

  • LIN bus; Diagnosis, programming and camera control
  • Sym. Video; Video signal from the camera
  • CAN_POW; Power supply from control unit to camera, heating of camera lens
  • Ground; Common ground of camera and control unit for suppressing interference

The video signal between the camera and the control unit is transmitted via two cables as a symmetrical, Analog video differential signal.

In the control unit the differential signal is converted into a CVBS signal and, depending on the equipment specification, transmitted to the navigation system or the video module.

The camera is powered under the following conditions:

  • Switching on of BMW Night Vision by the button in the light switch center
  • Rain/light sensor detects dusk/half-light (driving lights are switched on)

The BMW Night Vision control unit is powered by the front distribution box via term. 30B.

K-CAN

The K-CAN connection of the Night Vision control unit serves to transmit the diagnosis and programming data and to read out the information from the RLS (brightness), the LM (driving lights on) and DSC (yaw rate, speed and steering angle). The signals from DSC are placed on the K-CAN via the KGM. In addition, the control unit receives information on the terminal status via the K-CAN.

System Circuit Diagram (E60/E61/E63/E64)

BMW Night Vision
Fig. 6: System Circuit Diagram (E60/E61/E63/E64)

Legend for System Circuit Diagram (E60/E61/E63/E64)

BMW Night Vision
Fig. 7: Legends For System Circuit Diagram (E60/E61/E63/E64)
