BMW 7 Series: Replacing Safety Battery Terminal (SBK)

CAUTION: Observe safety regulations.

To do so, read out fault memory of airbag control unit. Note fault messages stored in memory. Rectify faults. Then clear fault memory.

Use of safety battery terminal:

• From model year 1998 in Series E38, E39, E46
• From 4/99 in E36/Z3
• in each of following new Series

The different models have different installation locations:

Battery in engine compartment

Safety battery terminal is replaced with cable up to battery positive support point.

Safety battery terminal is omitted as from 03/2002 from all E46 LHD models with 4- cylinder engines.

Battery in luggage compartment behind side trim panel

Remove side trim panel.

Follow instructions for disconnecting and connecting battery.

Disconnect and cover battery negative lead.

Fig. 72: Removing Side Trim Panel

Release front side trim panel partly and fold forward.

Fig. 73: Releasing Front Side Trim Panel Partly

Battery in luggage compartment under floor trim panel

Follow instructions for disconnecting and connecting battery.

Fold back floor trim panel (1).

Lift cover (2) on battery negative lead.

Disconnect and cover battery negative lead (3).

Release nuts (4).

Remove battery cover.

Fig. 74: Folding Back Floor Trim Panel

Battery in luggage compartment under spare wheel

Remove spare wheel.

Release screws.

CAUTION: Do not kink air pipes.

Set air supply system (1) to one side.

Follow instructions for disconnecting and connecting battery.

Disconnect battery negative lead.

Fig. 75: Locating Air Supply System Screws

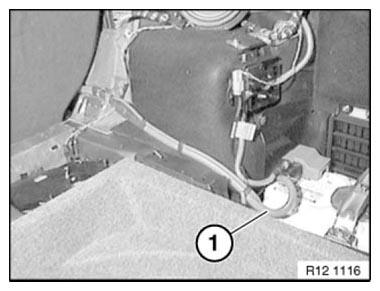

Disconnect supply cable (1) for vehicle electrical system.

Installation

Remove faulty fuses and carry out troubleshooting.

Fig. 76: Identifying Vehicle Electrical System Supply Cable

CAUTION: Pay attention to interface.

The repair cable is always a standard length.

The heavy-current connector of the repair cable has a larger diameter than the battery positive lead.

In some Series (e.g. E46 touring), the heavy-current connector of the repair cable can lead to installation problems.

This is the case when the interface is in the area of the close-fitting trim panels.

Find matching interface (e.g. approx. 10 cm behind rear seat backrest in E46 touring).

Lay repair cable parallel to battery positive lead.

Mark interface of battery positive lead at end of repair cable.

Fig. 77: Locating Interface Mark On Battery Positive Lead

Release cable ties (1).

Disconnect plug connection (2).

Fig. 78: Identifying Cable Ties And Plug Connection

CAUTION: Do not use bolt cutters or similar tools to cut through the cable.

A cable end that has been squashed flat will no longer fit into the clamping sleeve.

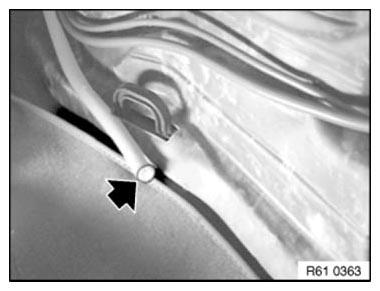

Saw through battery positive cable at marked point with an iron saw.

Fig. 79: Locating Cable End

Strip insulation - length (A) - from cable end.

Distance (A) = 15 mm.

Fig. 80: Identifying Cable End Distance

Push heavy-current connector (1) over stripped cable end and screw into position.

Fig. 81: Identifying Heavy-Current Connector

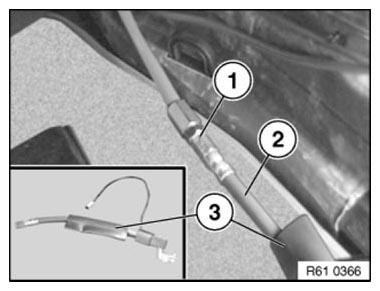

Push shrink-fit hose (3) over repair cable.

Screw threaded sleeve (1) of repair cable (2) to heavy-current connector.

Fig. 82: Identifying Shrink-Fit Hose And Threaded Sleeve Of Repair Cable

Push shrink-fit hose (1) over connecting point and shrink on with a hot-air blower (2).

Fig. 83: Pushing Shrink-Fit Hose Over Connecting Point

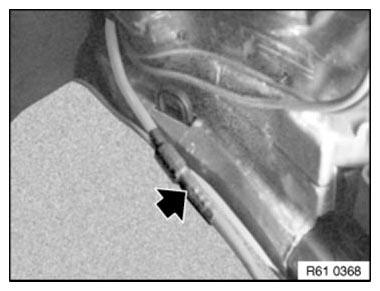

NOTE: Heat up shrink-fit hose until it has settled completely around the connection point.

 Fig. 84: Locating Shrink-Fit Hose

When laying the repaired battery positive cable, observe the following:

• The shrink-fit hose must not be scuffed during any movement.
• The repair cable must not cause any disturbing noises during driving operation.

NOTE: Offsetting cutting line by approx. 10 cm produces excess length of battery positive lead (1).

(Shown on E46 touring.)

Fig. 85: Identifying Battery Positive Lead
