BMW 7 Series: Adjusting Rear Lid To Fit
NOTE: The following text describes how to adjust the rear lid to fit at one mounting point as an example. Proceed in the same way for the other mounting points.
Height adjustment of rear lid: Release screws (1) and move rear lid in direction of arrows.
Depth adjustment of rear lid: Release screws (2) and move rear lid in direction of arrows.
Installation
Tightening Torque, height adjustment, 86 21 7AZ
Tightening Torque, depth adjustment, 86 21 9AZ
.png)
Fig. 144: Adjusting Rear Lid
Adjust gap (A) evenly all around without displacement and correct if necessary.
.png)
Fig. 145: Adjusting Gap
Check lid in transition (B) to hood for displacement and correct if necessary (flush).
.png)
Fig. 146: Checking Lid In Transition To Hood

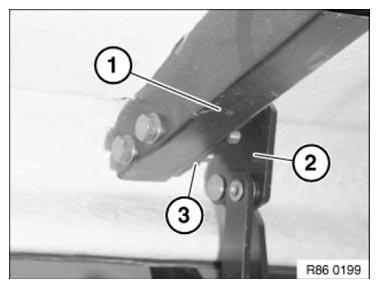

To align lid in transverse direction, you can install or remove plastic washers (3) between hinge bracket (1) and mounting bracket (2).
Installation
There must always be a plastic washer (3) fitted on left and right sides of mounting bracket (2). Plastic washers are available in thicknesses of 1 mm and 3 mm.
.png)
Fig. 147: Identifying Plastic Washers Between Hinge Bracket And Mounting
Bracket
Check lid in transition (C) to hood (flush) and correct if necessary. Correction is made by inserting or omitting plastic washers (refer to Fig. 147).
.png)
Fig. 148: Checking Lid In Transition To Hood
ADJUSTING ROTARY STRIKER LOCK
The following text describes how to adjust the rotary striker lock on the rear lid as an example. Proceed in the same way for the side lids. Adjust the lock while the lid is open.
Release screws (1) and adjust rotary striker lock (2) in elongated hole area in direction of arrows.
Installation
Tightening Torque, 86 21 12AZ
.png)
Fig. 149: Adjusting Rotary Striker Lock
ADJUSTING SIDE LID TO FIT
NOTE: The following text describes how to adjust the side lid to fit at one mounting point as an example. Proceed in the same way for all other mounting points.
Height adjustment of side lid: Release screws (1) and move side lid in direction of arrows.
Installation
Tightening Torque, 86 21 7AZ
.png)
Fig. 150: Adjusting Side Lid
Depth adjustment of side lid: Release screws (1) and move side lid in direction of arrows.
Installation
Tightening Torque, 86 21 7AZ
.png)
Fig. 151: Adjusting Side Lid Depth
Adjust gap (A) evenly all around and correct if necessary.
.png)
Fig. 152: Adjusting Gap
Check lid in transition (B) to hood for displacement and correct if necessary (flush).
.png)
Fig. 153: Checking Lid In Transition To Hood
To align lid in direction of travel, you can install or remove a spacer plate (3) between mounting bracket (1) and hinge (2).
.png)
Fig. 154: Identifying Spacer Plate Between Mounting Bracket And Hinge
Check lid in transition (C) to hood for displacement and correct if necessary (flush). Correction is made by inserting or omitting spacer plates (refer to Fig. 154).
.png)
Fig. 155: Checking Lid In Transition To Hood
