BMW 7 Series: Throttle And Operation

REMOVING AND INSTALLING/SEALING LEFT THROTTLE VALVE ASSEMBLY (N63)

Necessary preliminary tasks

  • Switch off ignition.
  • Remove left INTERCOOLER.

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque 13 54 1AZ.

Remove throttle valve assembly (3).

Installation: Check plug connection (1) for coolant remnants. If necessary, clean plug connection (1) with compressed air.

Throttle And Operation
Fig. 91: Identifying Throttle Valve Assembly With Plug And Mounting Screws

Installation

Replace sealing ring (1) of throttle assembly (2).

Throttle And Operation

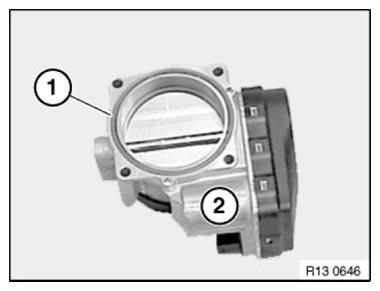

Fig. 92: Identifying Sealing Ring Of Throttle Assembly

Installation: Check stored fault message.

Now clear the fault memory.

REMOVING AND INSTALLING/SEALING RIGHT THROTTLE VALVE ASSEMBLY (N63)

Necessary preliminary tasks

  • Switch off ignition.
  • Remove right INTERCOOLER.

NOTE: Picture shows the left throttle valve assembly, the procedure for the right side is identical.

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque 13 54 1AZ.

Remove throttle valve assembly (3).

Installation: Check plug connection (1) for coolant remnants. If necessary, clean plug connection (1) with compressed air.

Throttle And Operation
Fig. 93: Identifying Throttle Valve Assembly With Plug And Mounting Screws

Installation

Replace sealing ring (1) of throttle assembly (2).

Throttle And Operation
Fig. 94: Identifying Sealing Ring Of Throttle Assembly

Installation: Check stored fault message.

Now clear the fault memory.
