BMW 7 Series: Safety Information For Working On Vehicles With Automatic Engine
Start-Stop Function (MSA)
WARNING: If the engine hood/bonnet contact is pulled upwards (workshop
mode),
the information "switch closed" is output. The automatic engine start-stop
function is active.
An automatic engine start is possible.
Observe safety precautions when working on MSA vehicles.
Before carrying out practical work on the engine, always ensure that the MSA
functionality is deactivated so as
to prevent automatic engine starting while work is being carried out in the
engine compartment.
MSA function is deactivated by

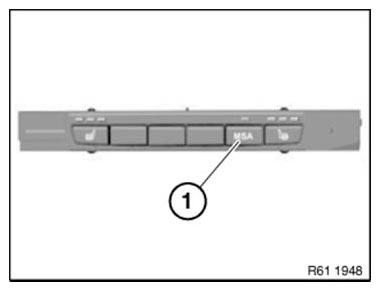

- Deactivate MSA by means of button (1) in passenger compartment
- Open seat belt buckle and driver's door
Fig. 13: Identifying MSA Button

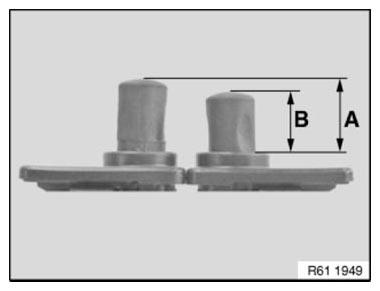

- Workshop mode
A = 10 mm
- Basic setting (engine hood/bonnet open)
B = 7 mm
To make sure that the engine hood/bonnet contact is at the basic setting, if
necessary press the
hood/bonnet contact up to the limit position before starting work and slowly
release.
Fig. 14: Identifying Basic Setting For Engine Hood/Bonnet Open
When working with diagnosis tools
- Observe instructions in diagnosis tool
SAFETY INSTRUCTIONS FOR HANDLING OIL
WARNING: DANGER OF POISONING if oil is ingested/absorbed through the
skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
Recycling
Observe country-specific waste disposal regulations.
Measures if oil is unintentionally released
- Personal precautionary measures: Danger of slipping! Keep non-involved
persons away from the work area. Wear personal protective
clothing/equipment.
- Environmental protection measures: Prevent oil from draining into drain
channels, sewerage systems,
pits, cellars, water and the ground.
- Limiting spread: Use oil blocks to prevent the surface spread of oil.
- Cleaning procedure: Bind and dispose of escaped oil with nonflammable
absorbents.
NOTE: Do not flush oil away with water or aqueous cleaning agents.
