BMW 7 Series: Replacing Actuator Drive For Left Rear Cabin Footwell Flap (High A/C System)
Necessary preliminary tasks
- Remove INSTRUMENT PANEL TRIM
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER Release screws (1) and remove grounding cable.
Installation:

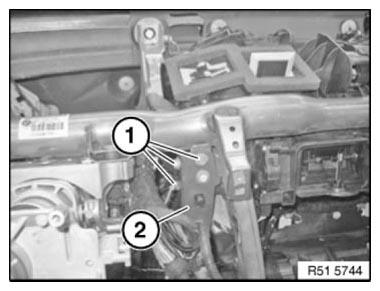

Replace screws (1).
Take off holder (2).
.png)
Fig. 61: Identifying Holder And Screws

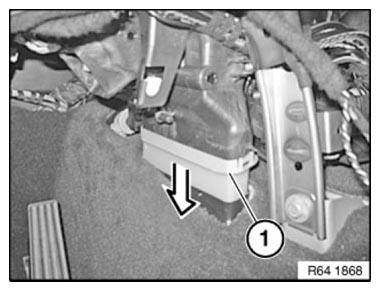

Unclip connector piece (1) and slide downwards.
Installation: Latching of connector piece (1) must be felt.
.png)
Fig. 62: Unclipping Connector Piece

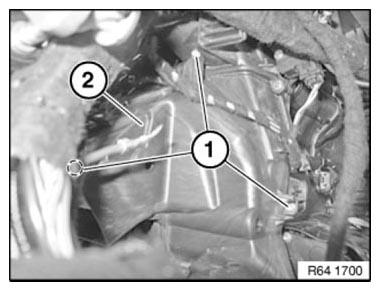

Release screws (1).
Remove air vent duct (2).
If necessary, unlock and disconnect plug connections on actuator drives.
Installation: Ensure cable routing along air vent duct (2) is correct
.png)
Fig. 63: Identifying Air Vent Duct And Screws

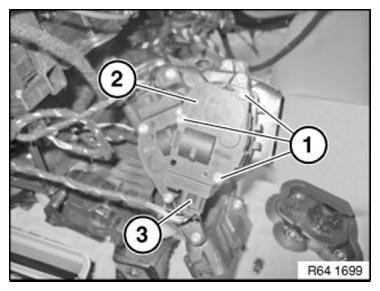

Release screws (1).
Remove servomotor (2) and unlock and disconnect plug connection (3).
.png)
Fig. 64: Identifying Servomotor, Plug Connection And Screws

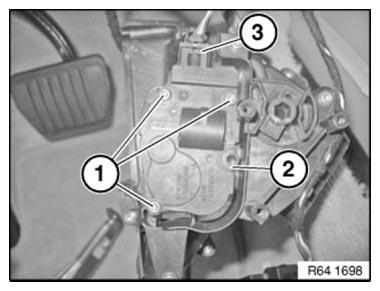

Release screws (1).
Remove servomotor (2) and unlock and disconnect plug connection (3).
.png)
Fig. 65: Identifying Servomotor, Plug Connection And Screws
Replacement
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
REPLACING ACTUATOR DRIVE FOR MIDDLE LEFT VENTILATION FLAP (HIGH A/C SYSTEM)
Necessary preliminary tasks
- Remove CENTRAL INFORMATION DISPLAY
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER
NOTE: For purposes of clarity, picture shows instrument panel removed.

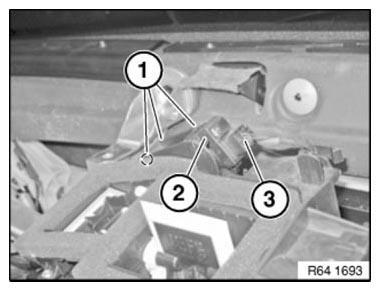

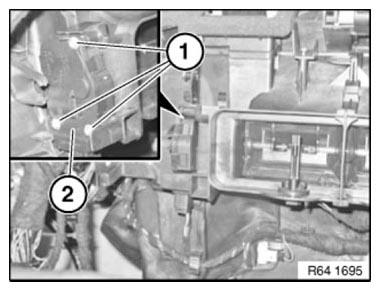

Release screws (1).
Remove servomotor (2) and unlock and disconnect associated plug connection.
.png)
Fig. 66: Identifying Servomotor And Screws
Replacement
Servomotors must be re-addressed in the event of replacement! Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
REPLACING ACTUATOR DRIVE FOR MIDDLE RIGHT VENTILATION FLAP (HIGH A/C SYSTEM)
Necessary preliminary tasks
- Remove CENTRAL INFORMATION DISPLAY
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

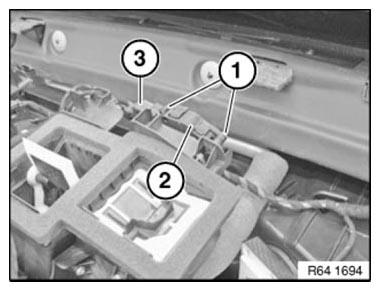

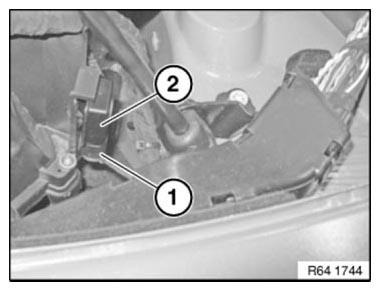

Release screws (1).
Remove actuator drive (2).
Unlock plug connection (3) and disconnect.
.png)
Fig. 67: Identifying Actuator Drive, Plug Connection And Screws
Replacement
Servomotors must be re-addressed in the event of replacement! Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
REPLACING ACTUATOR DRIVE FOR OUTER LEFT VENTILATION FLAP
Necessary preliminary work
- Remove INSTRUMENT PANEL TRIM
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT

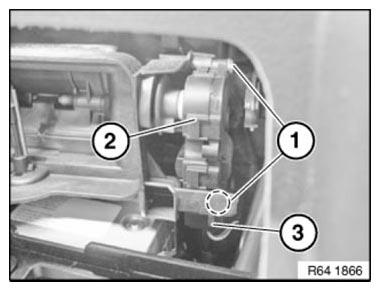

Release screws (1).
Remove servomotor (2) and unlock and disconnect plug connection (3).
.png)
Fig. 68: Identifying Servomotor, Plug Connection And Screws
Replacement
Servomotors must be readdressed in the event of replacement! Addressing can only be carried out with the BMW diagnosis system.
Service functions
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
REPLACING ACTUATOR DRIVE FOR OUTER RIGHT VENTILATION FLAP
Necessary preliminary work
- Remove INSTRUMENT PANEL TRIM
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT
Release screws (1).
Remove actuator drive (2) and unlock and disconnect plug connection (3).
.png)
Fig. 69: Identifying Actuator Drive, Plug Connection And Screws
Replacement
Servomotors must be readdressed in the event of replacement! Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
REPLACING ACTUATOR DRIVE FOR RECIRCULATED AIR FLAP
Necessary preliminary work
- REMOVE AUXILIARY ELECTRONICS BOX
Unlock plug connection (1) on automatic air recirculation control sensor (2) and disconnect.
.png)
Fig. 70: Identifying Plug Connection On Automatic Air Recirculation Control
Sensor

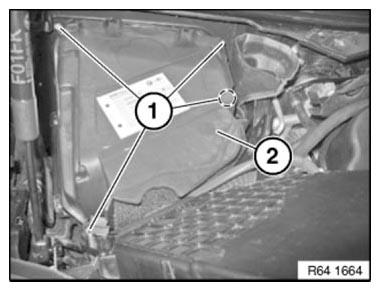

Release screws (1) on blower housing cover (2).
Lift out blower housing cover.
.png)
Fig. 71: Identifying Blower Housing Cover Screws

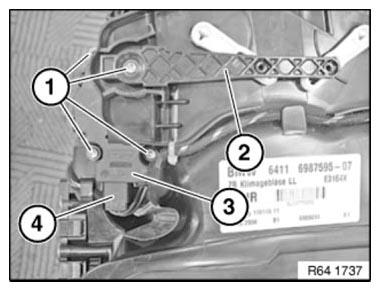

Release screws (1).
Unclip relay lever (2) with a suitable tool.
Remove actuator drive (3).
Unlock plug connection (4) and disconnect.
.png)
Fig. 72: Identifying Actuator Drive, Relay Lever, Plug Connection And Screws
Replacement
Servomotors must be re-addressed in the event of replacement! Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Re-address flap motors
