Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.
IMPORTANT: Ensure adequate ventilation in the place of work! Avoid skin contact (wear gloves)! Ensure absolute cleanliness when working on the open fuel system.
Contaminants in the fuel tank can impair driving operation or may even result in vehicle breakdown!
Necessary preliminary tasks
NOTE: Picture does not show the fuel tank outer skin.
Disconnect earth cable (1).
Disconnect fuel lines (2).
Release lock (4) and remove pump housing cover (3).
Fig. 58: Identifying Fuel Pump Housing Cover (Outer Fuel Filter) With Earth
Cable, Fuel Lines And
Lock

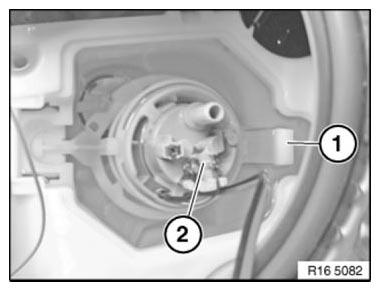

Release lock (1) and remove fuel pump (2) towards top.
Fig. 59: Identifying Fuel Pump With Lock
REMOVING AND INSTALLING/REPLACING PRESSURE REGULATOR (OUTER FUEL FILTER)
Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.
IMPORTANT: Ensure adequate ventilation in the place of work! Avoid skin contact (wear gloves)! Ensure absolute cleanliness when working on the open fuel system.
Contaminants in the fuel tank can impair driving operation or may even result in vehicle breakdown!
Necessary preliminary tasks
NOTE: Picture does not show the fuel tank outer skin.

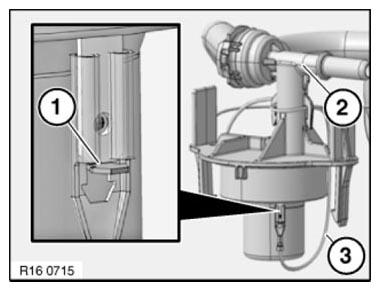

Press pressure regulator (2) together at tabs (3) and detach in upward direction.
Fig. 60: Pressing Pressure Regulator Tabs
Unlock plug on lock (1) and detach grounding cable (3) from pressure regulator (2).
Installation:
IMPORTANT: Check by pulling locking of grounding cable plug.
Observe cable routing (3) at pressure regulator.
Fig. 61: Identifying Pressure Regulator With Lock And Grounding Cable
