BMW 7 Series: Removing And Installing/Replacing Dust Filter For Natural Vacuum Leak Detection (NVLD)

Necessary preliminary work:

  • Remove CARBON CANISTER.

Unlock and disconnect snap fastener (1).

Release screw (2) and remove dust filter (3).

Installation note: Check gasket and replace if necessary.

Fuel Pump

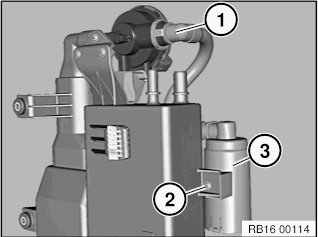

Fig. 44: Identifying Natural Vacuum Leak Detection (NVLD) Dust Filter, Snap Fastener, And Screw

REMOVING AND INSTALLING/REPLACING DUST FILTER FOR TANK LEAK DIAGNOSIS MODULE (DMTL)

Necessary preliminary tasks

  • Remove CARBON CANISTER

Unlock and disconnect snap fastener (1).

Fuel Pump

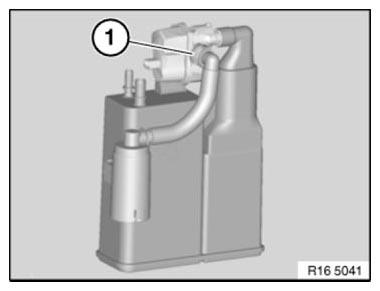

Fig. 45: Identifying Carbon Canister Snap Fastener

Release screw (1).

Remove dust filter (2).

Fuel Pump

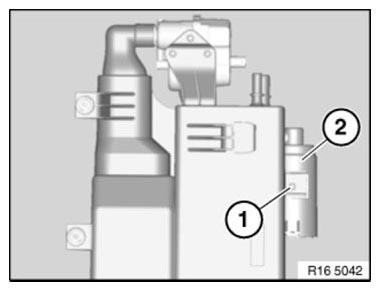

Fig. 46: Identifying Dust Filter With Mounting Screw

REMOVING AND INSTALLING/REPLACING FILTER CARTRIDGE FOR TANK LEAK DIAGNOSIS MODULE (DMTL)

Necessary preliminary tasks

  • Remove rear right WHEEL ARCH TRIM

Press lugs (1) apart slightly in direction.

Pull out filter cartridge (2) downwards.

Fuel Pump

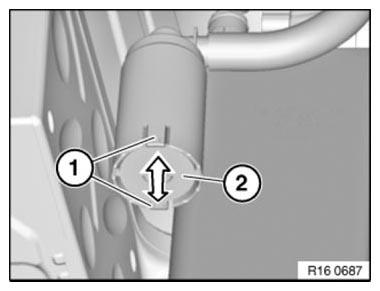

Fig. 47: Identifying Filter Cartridge With Lugs

REMOVING AND INSTALLING/REPLACING FLANGE COVER

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

IMPORTANT: Ensure adequate ventilation in the place of work! Avoid skin contact (wear gloves)! Ensure absolute cleanliness when working on the open fuel system.

Contaminants in the fuel tank can impair driving operation or may even result in vehicle breakdown!

Necessary preliminary tasks

  • DRAW OFF FUEL
  • REMOVE REAR SEAT
  • Vehicles with comfort seat: Remove right REAR SEAT

Fuel Pump

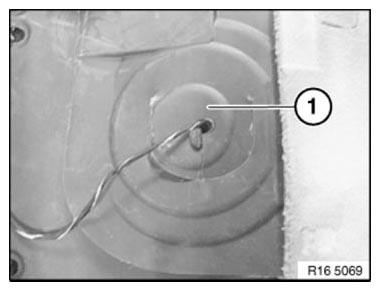

Fig. 48: Identifying Sound Insulation

Remove sound insulation (1).

Release screws (1).

Fuel Pump

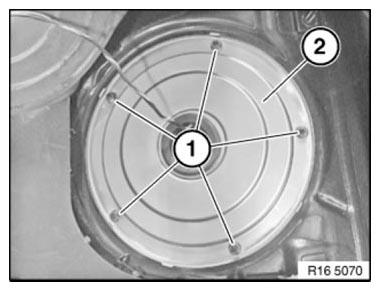

Fig. 49: Identifying Flange Cover With Mounting Screws

Disconnect plug connection (1).

Disconnect fuel line (2).

If necessary, disconnect fuel line for independent heating.

Installation: Check seal (3), replace if necessary.

Fuel Pump
Fig. 50: Identifying Fuel Line, Plug Connection And Seal

Fit special tool 16 1 190 with wide web (1) towards rear onto locking ring (2).

Connect special tool 33 5 070 to 1/2"

reversible ratchet head (3) and position on special tool 16 1 190.

Release locking ring (2) in counterclockwise direction.

Fuel Pump

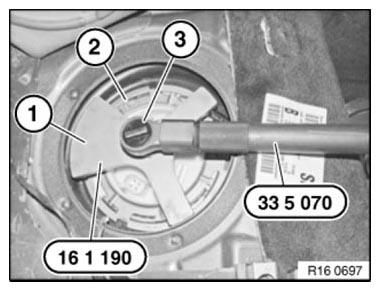

Fig. 51: Release Locking Ring In Counterclockwise Direction Using Special Tools (33 5 070 And 16 1 190)

Lift off flange cover (1).

Disconnect plug connections (2).

Disconnect fuel line (3).

Installation: Replace sealing ring (4).

Fuel Pump

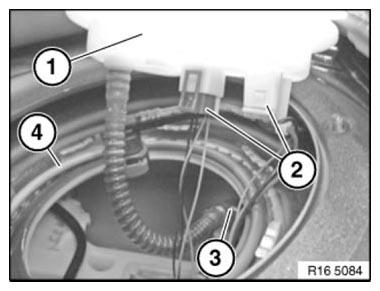

Fig. 52: Identifying Flange Cover With Fuel Line, Plug Connection And Sealing Ring

REMOVING AND INSTALLING/REPLACING FLANGE COVER (OUTER FUEL FILTER)

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

IMPORTANT: Ensure adequate ventilation in the place of work! Avoid skin contact (wear gloves)!

Necessary preliminary tasks

  • DRAW OFF FUEL
  • REMOVE REAR SEAT
  • Vehicles with comfort seat: Remove right REAR SEAT

Remove sound insulation (1).

Fuel Pump
Fig. 53: Identifying Sound Insulation

Release screws (1).

Remove cover for service opening (2).

Fuel Pump
Fig. 54: Identifying Flange Cover (Outer Fuel Filter) With Mounting Screws

Disconnect plug connection (1).

Disconnect fuel lines (2).

Installation: Check seal (3), replace if necessary.

Fuel Pump

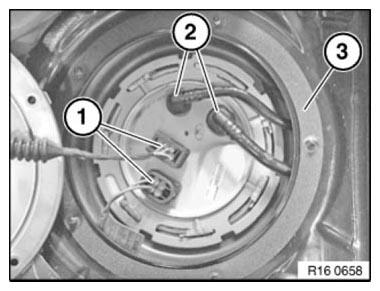

Fig. 55: Identifying Plug Connections, Seal And Fuel Lines

Fit special tool 16 1 190 with wide web (1) towards rear onto locking ring (2).

Connect special tool 33 5 070 to 1/2" reversible ratchet head (3) and position on special tool 16 1 190.

Release locking ring (2) in counterclockwise direction.

Fuel Pump
Fig. 56: Unlocking Ring In Counterclockwise Direction Using Special Tools (33 5 070 And 16 1 190)

Lift off flange cover (3).

Release plug connection (1) and disconnect fuel lines (2) from flange cover (3).

Remove flange cover (3).

Installation: Replace sealing ring (4).

Fuel Pump
Fig. 57: Identifying Flange Cover, Fuel Lines, Plug Connection And Sealing Ring
