The following operations should only be carried out when using the tool kit for calibrating the reversing camera for the first time.
NOTE: The operation is described for the left-hand side; proceed in the same way for the right-hand side.

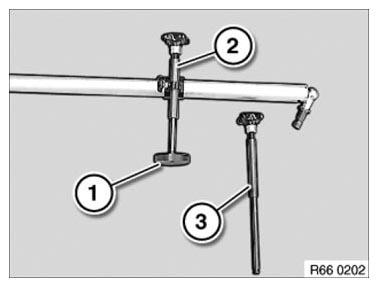

Remove support plate (1) from spindle (2).
Replace spindle (2) by spindle (3).
Press support plate (1) on to spindle (3).
.png)
Fig. 37: Identifying Support Plate On Spindle

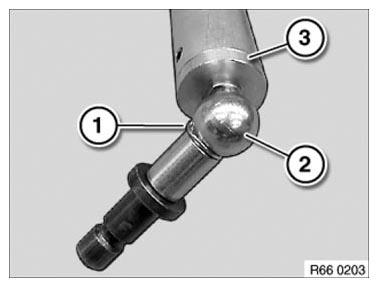

Release retaining clip (1).
Remove ball pin (2) from rod (3).
.png)
Fig. 38: Identifying Retaining Clip And Ball Pin From Rod

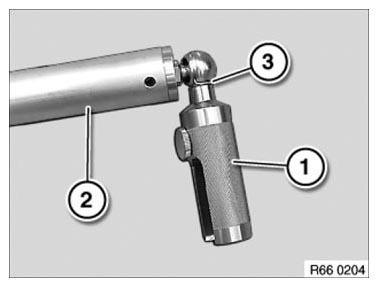

Fit new ball pin (1) on rod (2) and secure with retaining clip (3).
Fit ball pin (1) on CORGHI KDS quick-release clamp and secure.
.png)
Fig. 39: Identifying Ball Pin On Rod With Retaining Clip

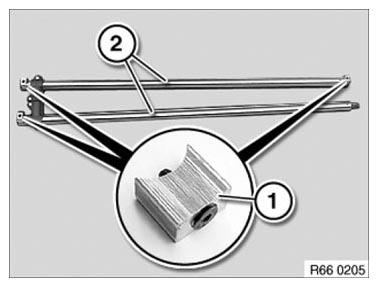

Remove all spacers (1) on cross bar (2).
NOTE: Follow the same procedure for calibrating the reversing camera.
.png)
Fig. 40: Identifying Spacers On Cross Bar
REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR REVERSING CAMERA
IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION).
Necessary preliminary work

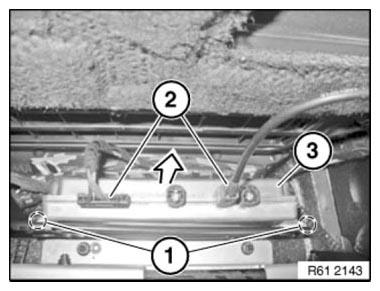

Unlock plug connections (2) and disconnect.
Unscrew nuts (1).
Remove control unit (3) in direction of arrow.
.png)
Fig. 41: Removing Control Unit
